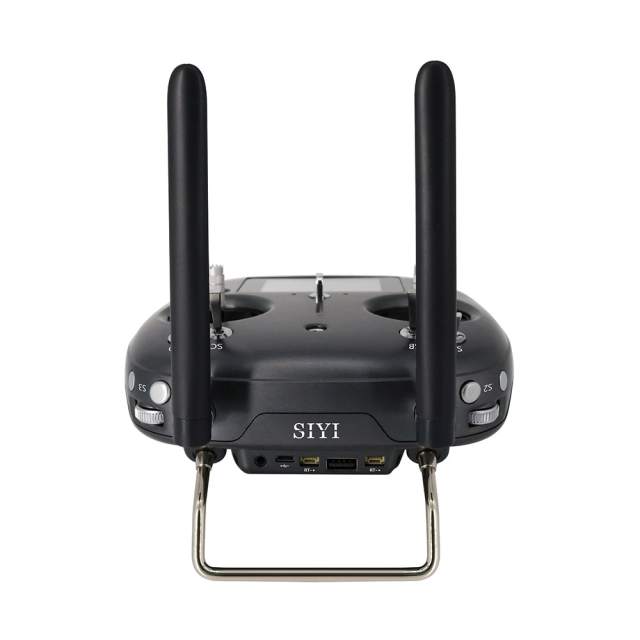

SIYI DK32 SE Agriculture Remote Controller with 2.8 Inch LCD Touchscreen Long Range Datalink 16 Channels 10KM

Technical

Overall

Model: DK32 SE
Frequency Band: 2400 to 2483 MHz
Control Range: 10 Kilometers
Channels: 16 physical channels, 16 communication channels
Compatible Agriculture Flight Controllers:
- BOYING Paladin V2
- JIYI K++ V2 / K3A Pro
- VK V7AG
- Pixhawk / APM based flight controllers
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

Remote Controller

Monitor: 2.8-inch LCD Touchscreen
Language Display: Chinese / English
Dimensions (antenna overlapped): 184.5 x 180 x 114 mm
Weight: 610 g
Battery Capacity & Type: Built-in Chargeable 5000 mAh 3.7 V 1S Li-Po, 18.5 Wh
Charging Time: 3.5 hours
Battery Life: 12 hours
Interface & Ports:
- Charging: Micro-USB
- Firmware Upgrade: Micro-USB
- External Storage: SD/TF Card Slot
Working Temperature: 0 to 55℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 55 x 45 x 16 mm
Weight (antenna excluded): 50 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃
