SIYI MK15E Mini HD Handheld Agriculture Smart Controller with 5.5 Inch High Brightness High Definition LCD Touchscreen Dual Full HD FPV Low Latency Long Range Japan MIC Korea KC Certified

Technical

Overall

Model: MK15E
Max Transmission Range: 5 kilometers (unobstructed, free of interference)
Agriculture Control Range: 2.5 kilometers (flying at 3-meter's altitude)
Channels: 13 physical channels, 16 communication channels
Compatible Agriculture Flight Controllers:
- BOYING Paladin V2
- JIYI K++ V2 / K3A Pro
- VK V7AG
- Pixhawk / APM based flight controllers
Compatible Enterprise Flight Controllers:
- JIYI KX
Compatible Pixhawk Based Flight Controllers:
-
Compatible Android GCS (standard RTSP video stream):
- QGround Control
- JIYI IFLY / Agri-Assistant
- BOYING Agriculture
- VK V7 Pro
Compatible Windows GCS (standard RTSP video stream):
- Mission Planner

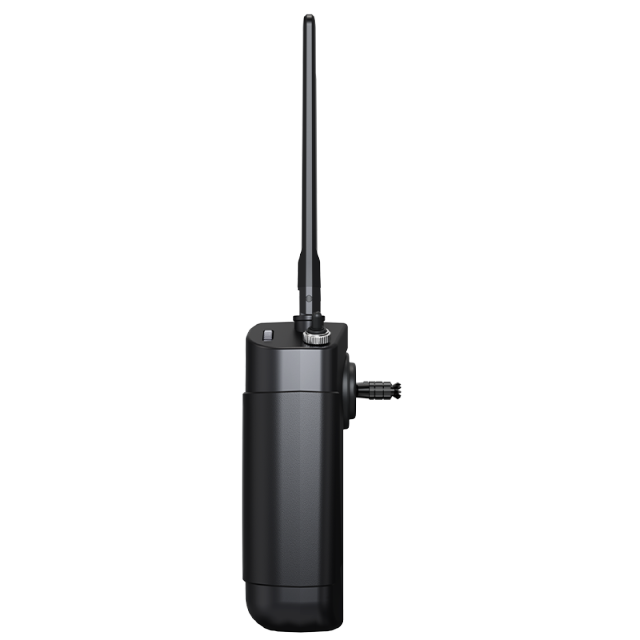

Remote Controller

Monitor: 5.5-inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 2 G RAM & 16 G ROM
Dimension (antenna overlapped): 189 x 138 x 41 mm
Weight: 850 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Battery Life: 15 hours
Interface & Ports:
- Charging: Type-C
- Firmware Upgrade: Bottom DATA (4-Pin)
- 4G/LTE Network: SIM Card Slot
- External Storage: TF Card Slot
- Tripod Connect: 1/4-inch Screw Hole
- Video Output: Standard HDMI
- External RTK: Top DATA (4-Pin)
- Data Transfer: USB-A
Waterproof Level: IP53
Working Temperature: -10 to 55℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded): 75 x 48 x 17 mm
Weight (antenna excluded): 116 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 58.8 V (4S to 14S)
Working Temperature: -10 to 55℃

IP67 FPV Camera
Camera Angle: FOV 105°
Dimensions: 106 x 25 x 41 mm
Weight: 108 g
Searchlight Power Consumption: 8 W
Luminous Flux: 1 W / 120 to 140 lm
LED Type: Transparent
LED Angle: 120°
Waterproof Level: IP67
Working Temperature: -10 to 55℃
